Google Nexus 5 Battery Replacement

Update (December 2016): If you’re looking to buy a genuine battery, it looks like Encompass, one of LG’s authorized distributors in the U.S., has the genuine battery in stock, so you should check their website first. They also appear to stock the BL-T19 (EAC63079601) for the Nexus 5X as well, although it is currently on backorder.

Recently, I started playing Pokémon Go, which made my realize that the battery on my Nexus 5 had deteriorated. Since it’s been approximately two years since I originally purchased the phone, I looked into buying a replacement battery, but discovered that it is apparently very difficult to purchase a genuine replacement battery. For reference, the battery used in the Nexus 5 (US: D820, World: D821) is labeled as a LG BL-T9, rated for 2300 mAh typical at 3.8 V for a total of 8.74 Wh. The actual battery cells manufactured by both LG (1, 2) and Sony (1, 2), with LG batteries having part number EAC62078701 LLL, replacement part number F289368, and battery part number, LGHD4ZQ4556, and Sony batteries having part number EAC62079101 SLB and replacement part number US465661H 2. For information about verifying the authenticity of a battery, refer to the bottom of the page.

Counterfeit Battery

Initially, I bought a replacement battery online for $11.98, which was advertised as a new “Genuine OEM” battery from a highly-rated seller on eBay. Through a shipping mishap, I ended up with two batteries, but unfortunately it turned out that none of the advertised attributes were true.

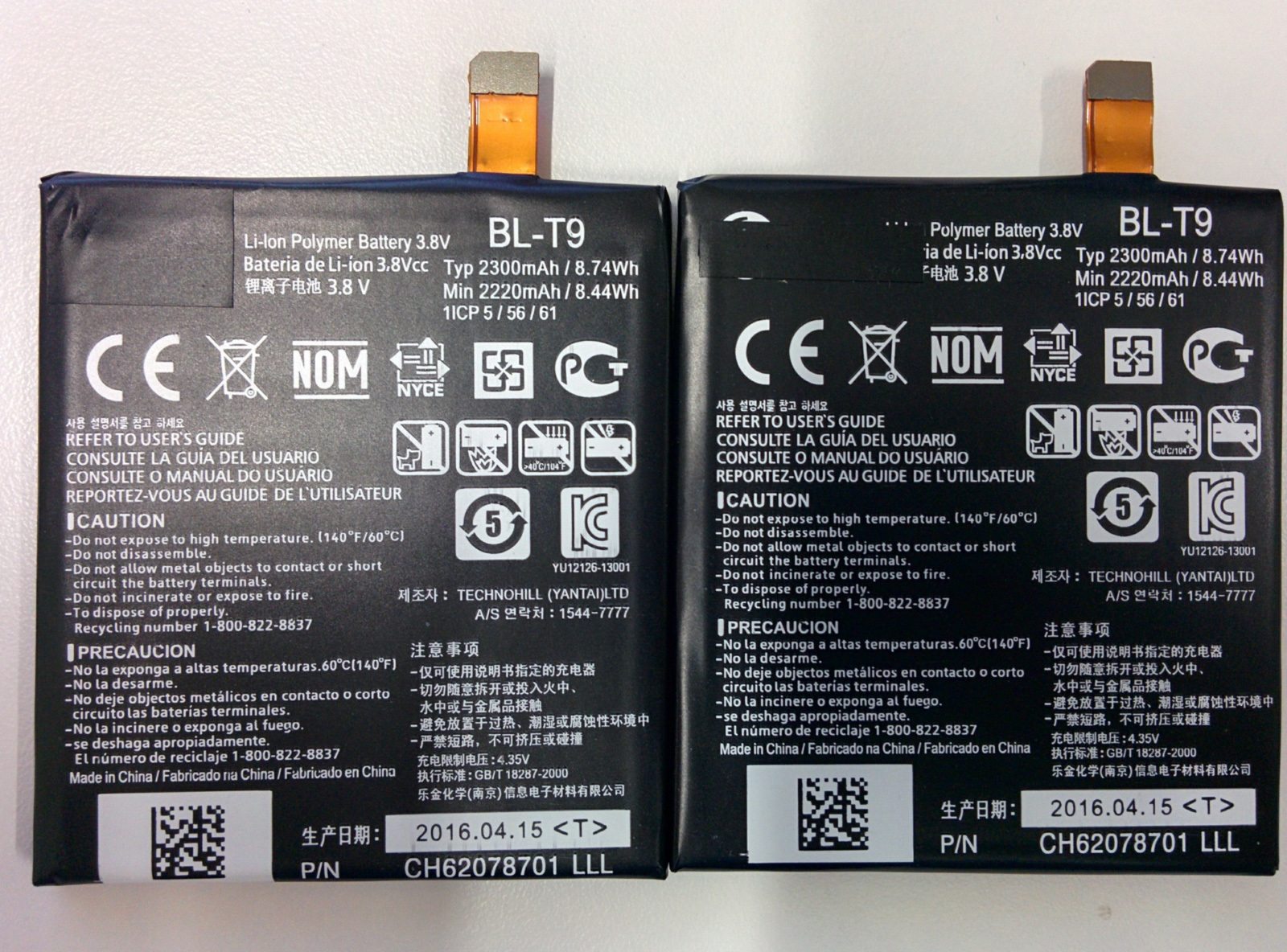

Front view of counterfeit batteries

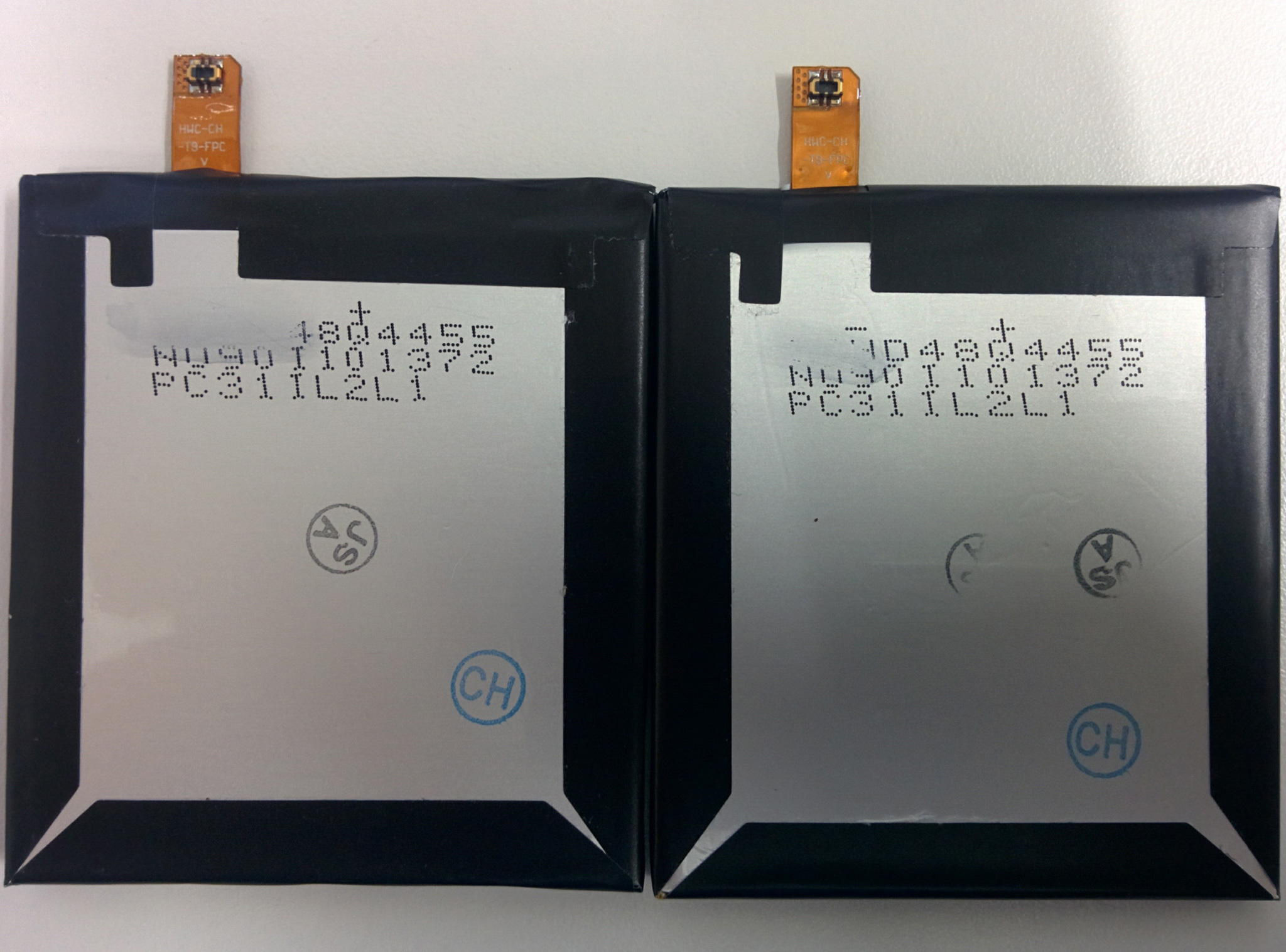

Back view of counterfeit batteries

Luckily, it’s fairly obvious that this battery is counterfeit. Here’s a non-comprehensive list of some characteristics to watch out for:

  • The “LG” logo shouldn’t be covered with manually cut (and incorrectly sized) electrical tape.
  • Likewise, the battery part number (CH62078701 LLL) shouldn’t be different from the genuine part number (EAC62078701 LLL).
  • The cell part number shouldn’t look like somebody tried to erase the letters LG with isopropryl alcohol or another solvent.
  • Also, the cell part number (LGHD48Q4455) shouldn’t be different from the genuine cell part number (LGHD4ZQ4556).
  • The printed cell rating (2050 mAh) shouldn’t be lower than the typical (and definitely not the minimum) ratings of 2300 mAh and 2220 mAh, respectively.
  • The data (EAC62078701LT130917) in the data matrix barcode shouldn’t differ from any of the printed data, including the cell part number, and the cell manufacture date (2013/09/17 vs. 2016/04/15).
  • Lastly, if you receive two batteries, they shouldn’t be exactly the same, since serial numbers, lot numbers, etc, should be different.

And if that’s not enough, let’s remove the labeling on the counterfeit battery to take a closer look.

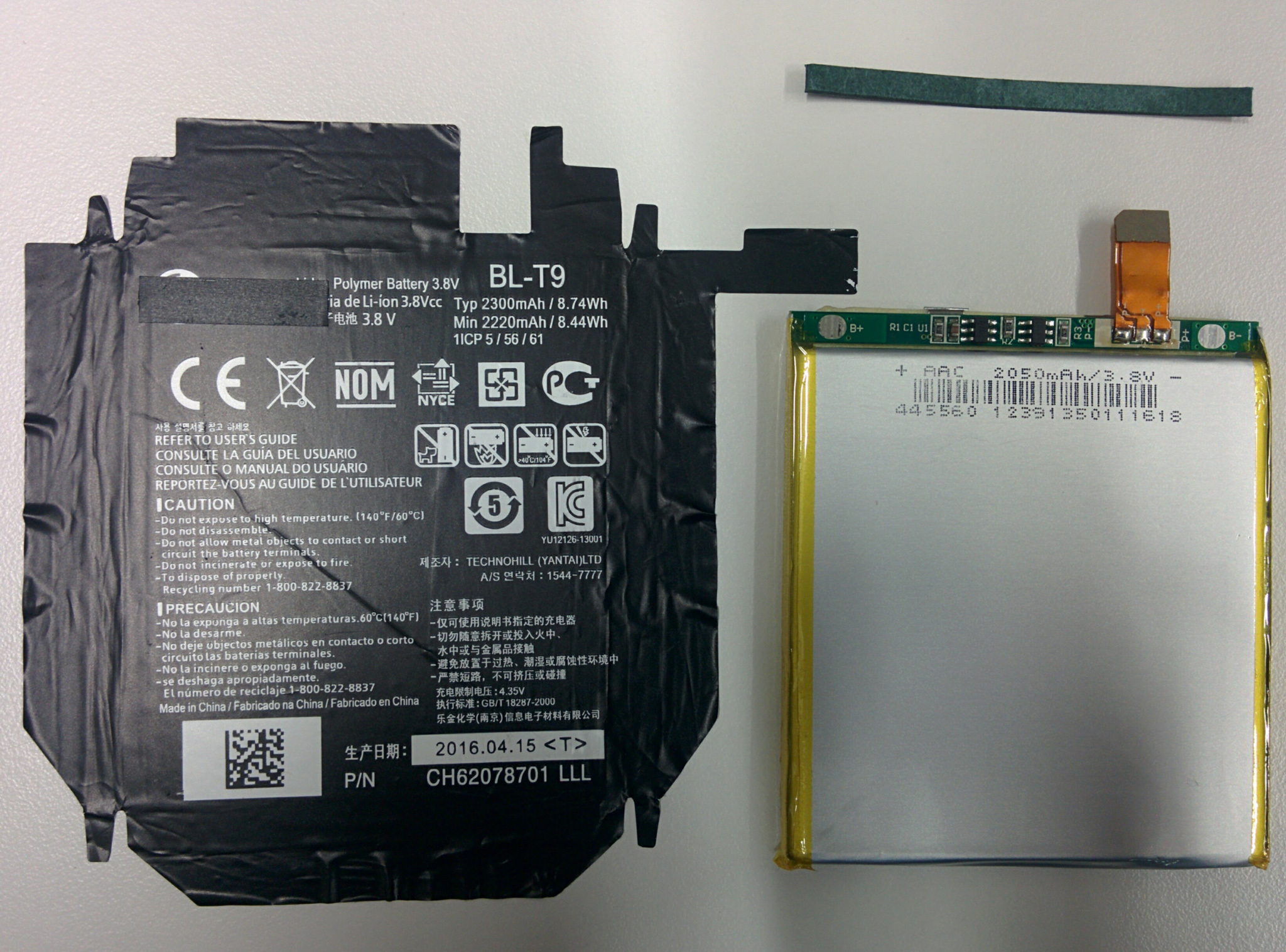

Counterfeit battery with labeling removed

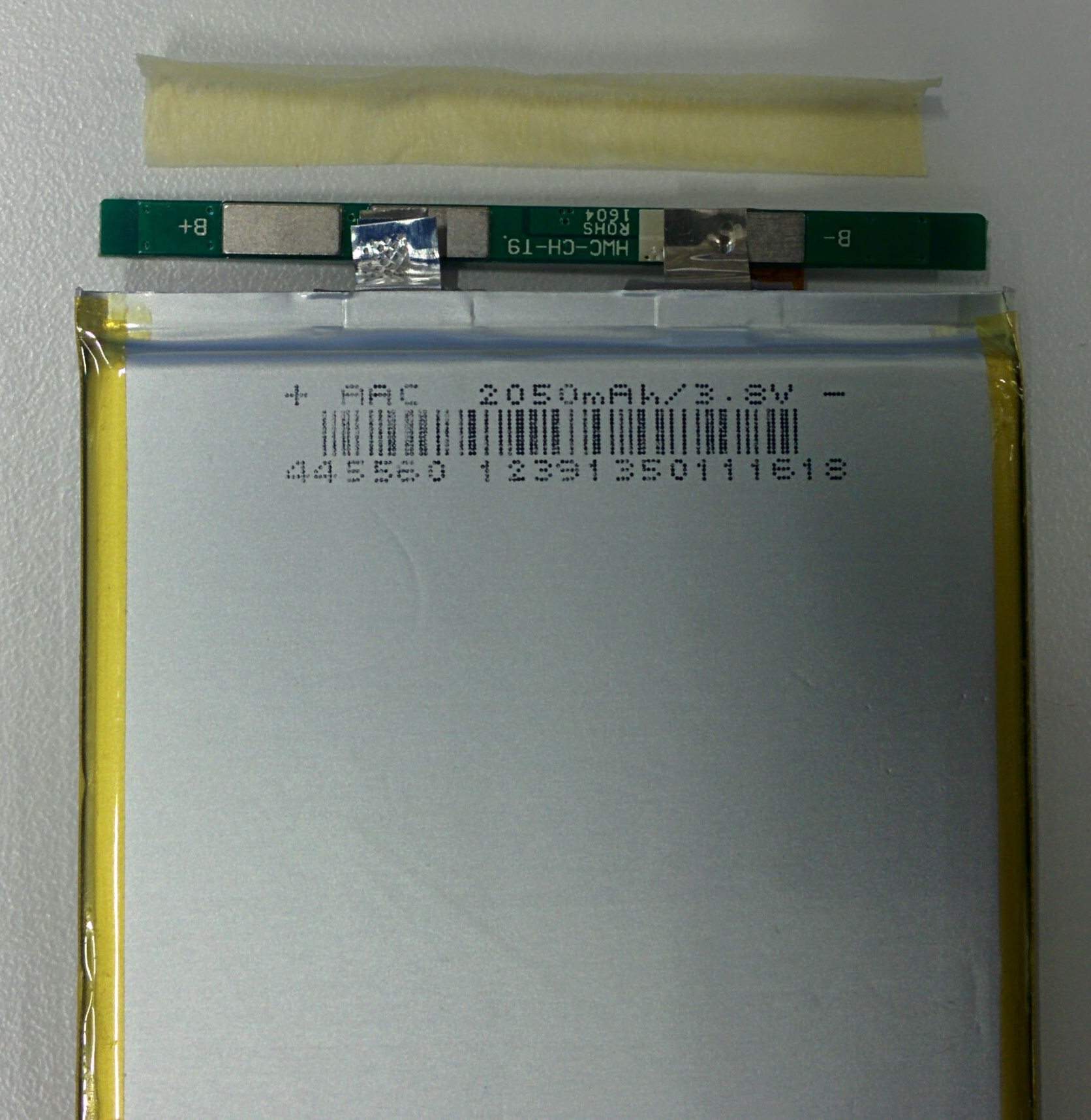

Top view of a counterfeit battery with labeling removed

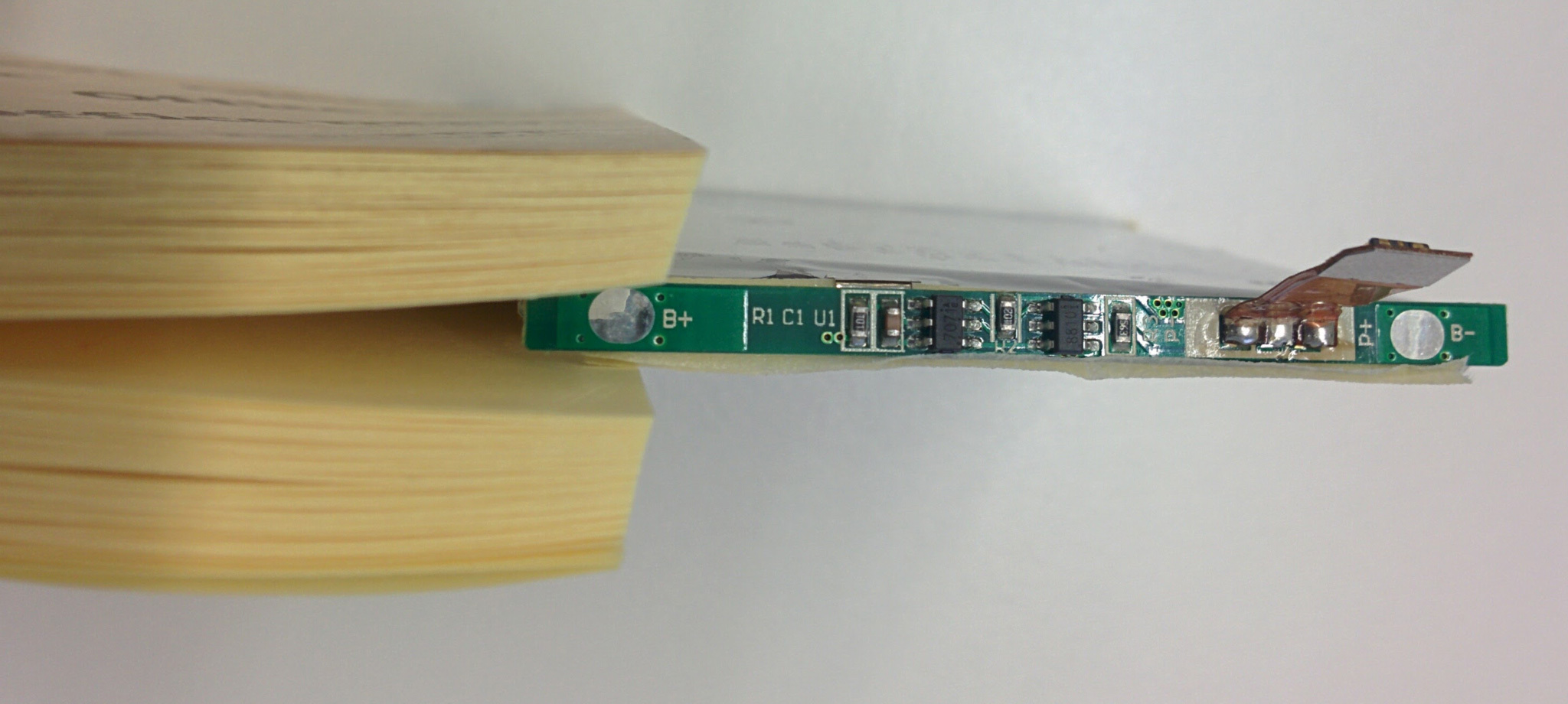

Close-up of the circuit board on a counterfeit battery with labeling removed (held by a stack of Post-it notes)

The protection circuit board appears to have been designed for compatibility with multiple different battery cells, likely to save cost due to supply chain issues, since there are two B+ contacts on the board with different spacing. It turns out that the quality of these counterfeit batteries isn’t great either; not only do you get less than the advertised capacity, but the spot welding of the battery tabs onto the B+ and B- contacts of the protection circuit board is pretty sub-par, with the B- contact barely held on by a single weld. The use of masking tape as an insulator for the battery tabs, again likely to save cost, is also pretty bad; the standard for this type of applicaiton is Kapton (polyimide) tape. As an aside, I’d be curious to know what the two chips on the circuit board are: they appear to have SOT23-6 packages with markings 7071 and 8810; drop me a line if you figure them out.

Genuine Battery

Eventually, I discovered that there’s only one source for guaranteed genuine replacement batteries—LG themselves, or one of their authorized parts distributors. Unfortunately, the only authorized parts distributor that I could find with the BL-T9 battery in stock is their German distributor, EURAS / ASWO Service GmbH (use Google Translate and search for BL-T9), which sells it for € 32, but doesn’t ship to the United States. So, I set up an account with a German mail forwarding service, and purchased the battery.

Alas, I encountered another snafu—IATA recently enacted a prohibition on shipping lithium-ion batteries in passenger aircraft, effectively April 1st, 2016. Even though the Nexus 5 battery has ≤ 20 Wh of capacity and contains only a single cell, this means that it is classified as a dangerous good by virtually all shipping companies, which have strict limitations on shipping such batteries, especially if they are packed individually without equipment under section II of the UN3480 PI965 regulations. In particular, Deutsche Post, the privatized German national mail carrier, has limited service and requires separate account approval for such batteries. The only other shipping method offered by my forwarding service is United Parcel Service (UPS), which does accept lithium-ion batteries, but requires special labeling, a completed Lithium Ion Safety Document, and is significantly more expensive. In the end, I bit the bullet and paid the shipping fee.

Here are some photos of the genuine battery that I received, and of the original battery from my Nexus 5 that I replaced.

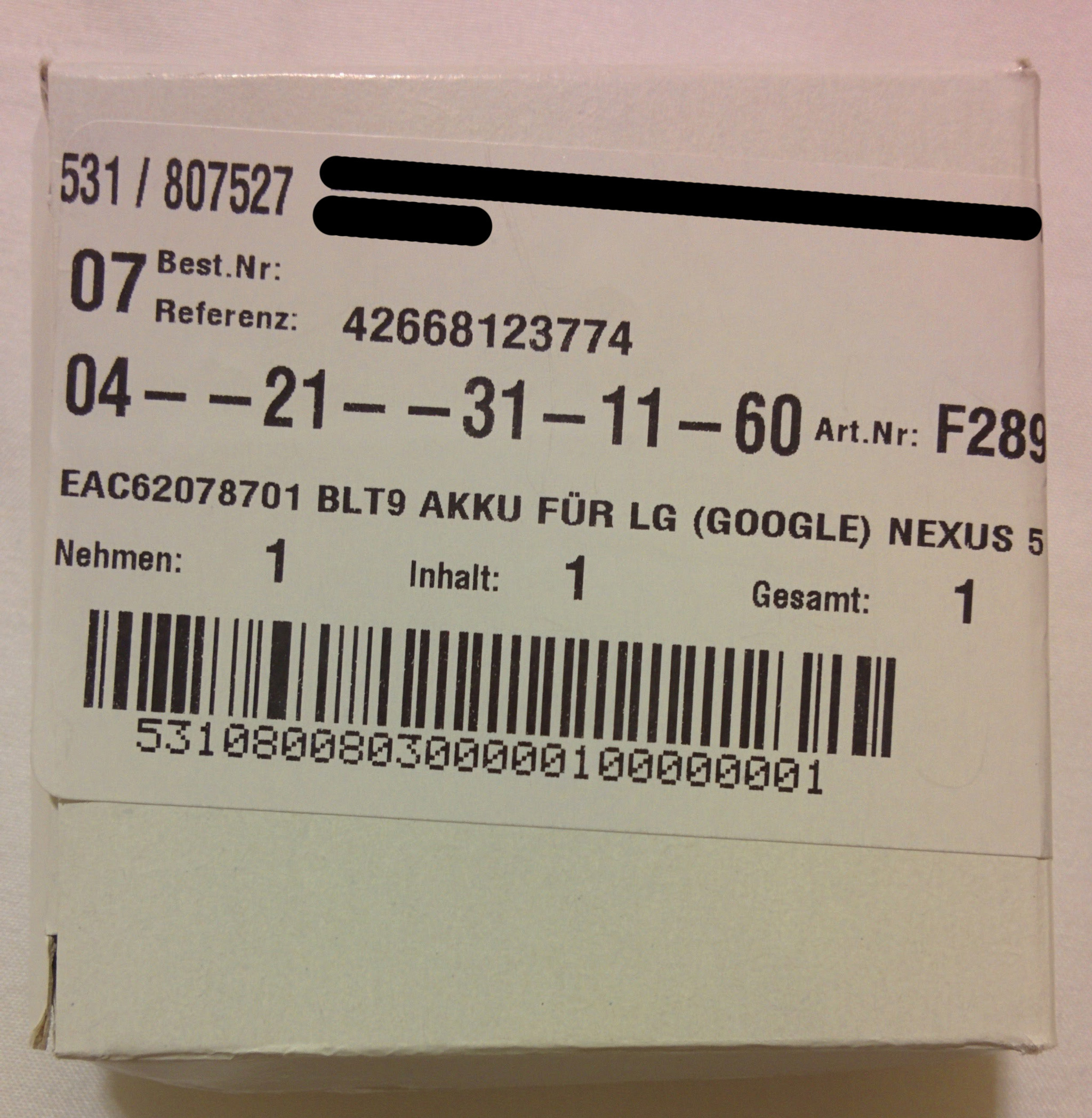

Exterior view of the (oversized and dented) box that the replacement battery was stored in

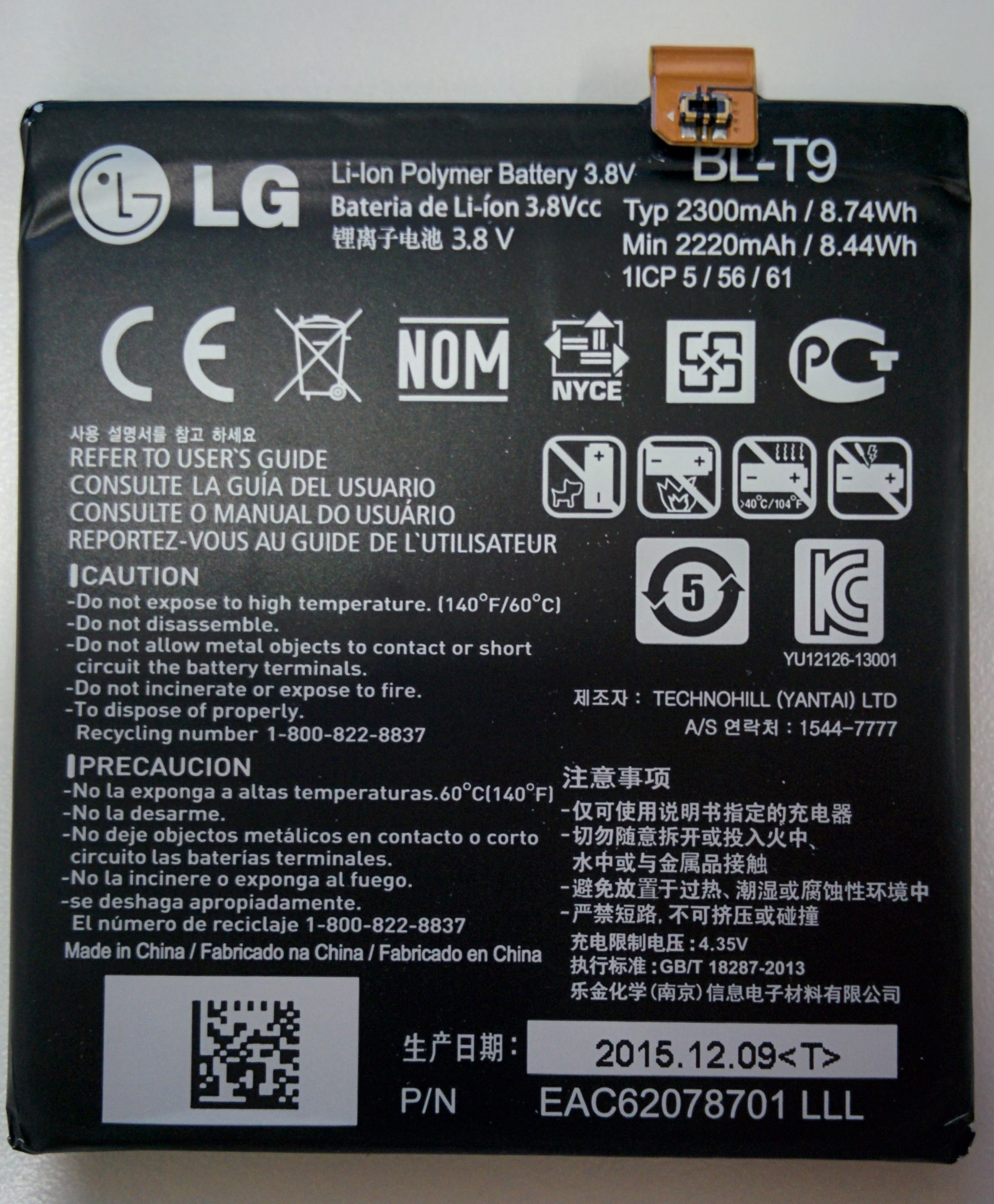

Genuine new battery (front)

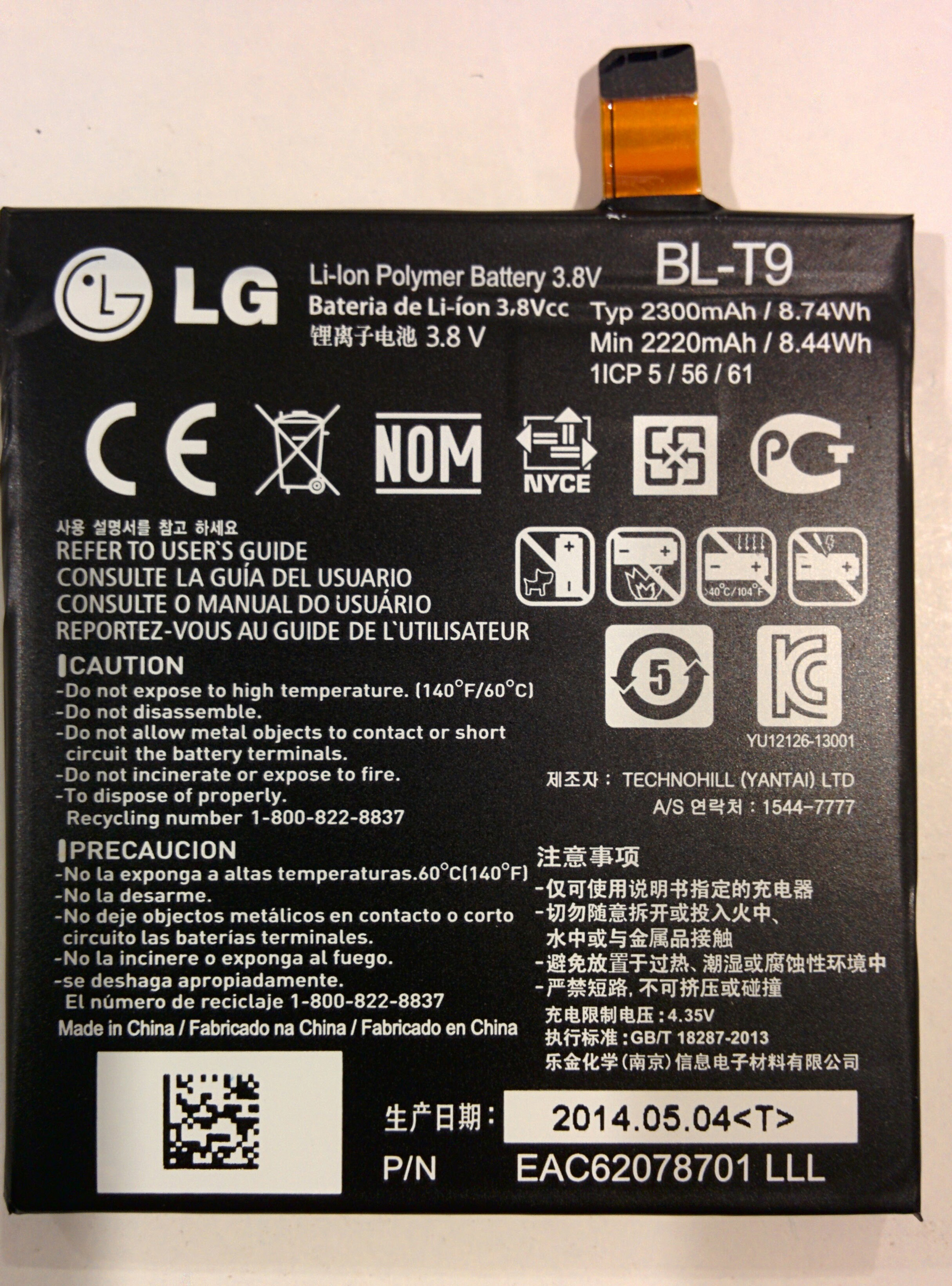

Genuine old battery (front)

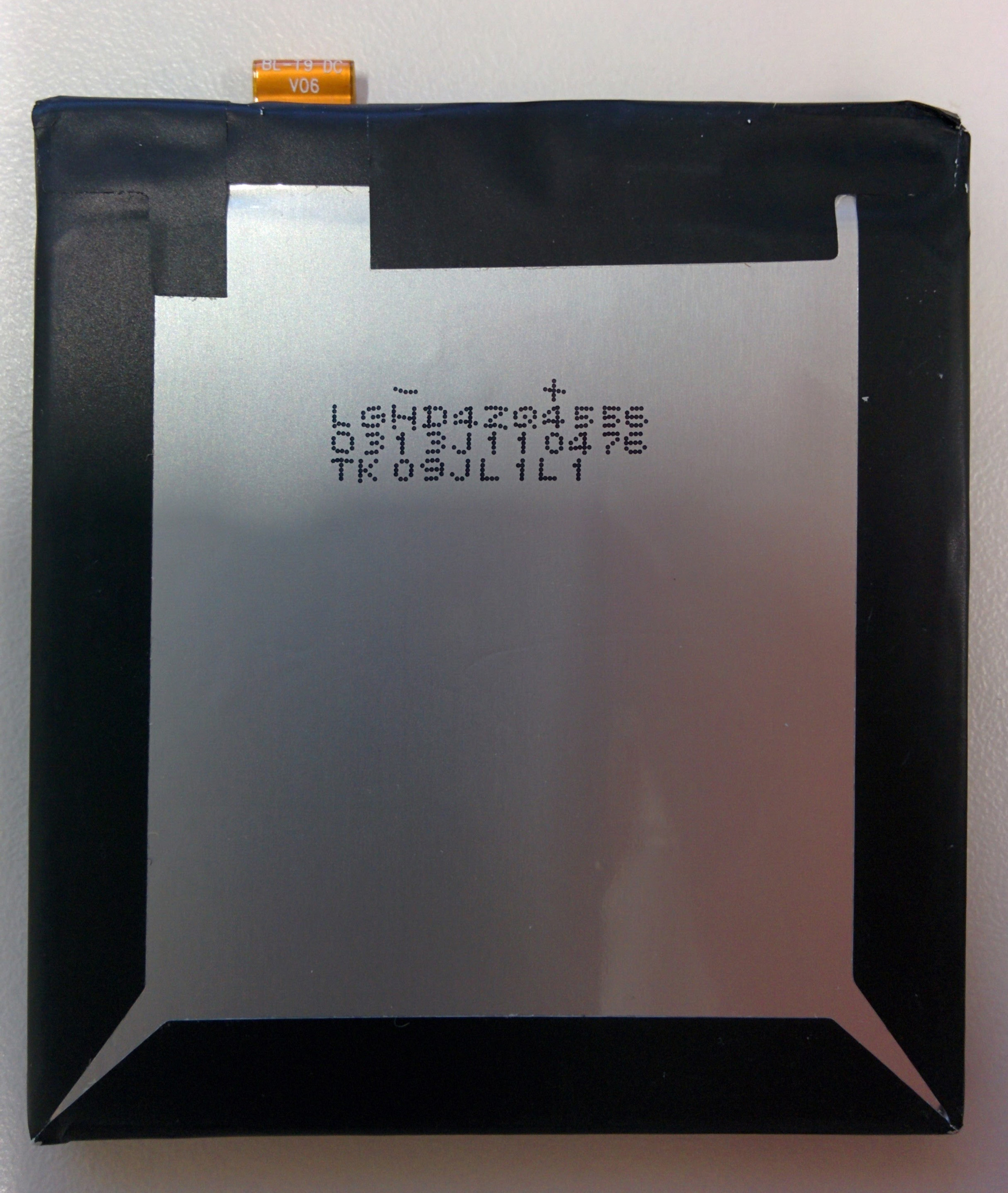

Genuine new battery (back)

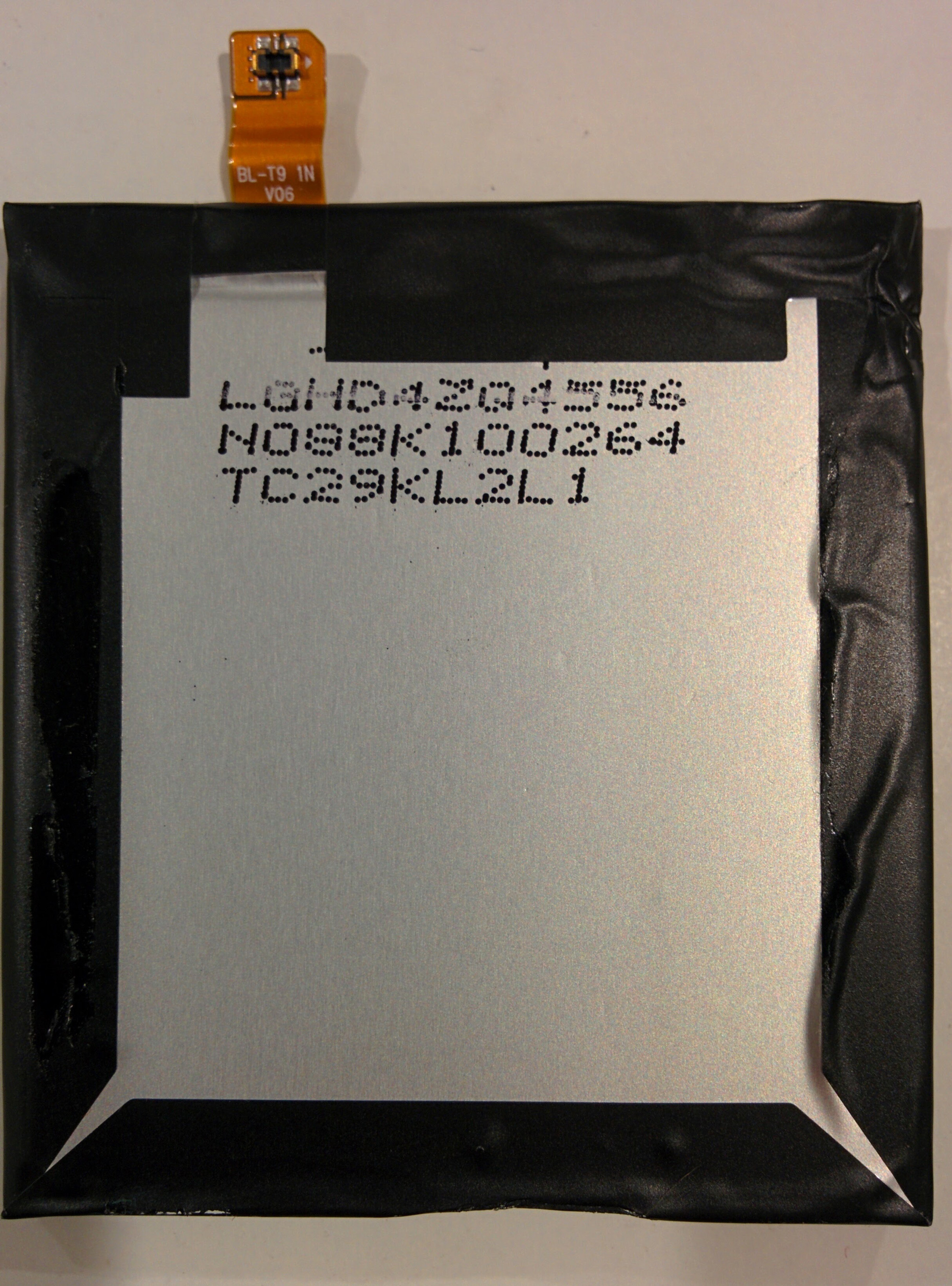

Genuine old battery (back)

Verifying Authenticity

Below is a short checklist for verifying the authenticity of a Nexus 5 battery. Note that I’ve only personally verified this with cells manufactured by LG, which appear to be the majority.

  • The battery should be a BL-T9, packaged by Technohill (Yanhai) Ltd. Cells manufactured by LG have Korea Communications Commission (KCC) certification number YU12126-13001 and part number EAC62078701 LLL, whereas cells manufactured by Sony have KCC certification number B052H006-9004 and part number EAC62079101 SLB.
  • The text on the connector flex PCB should correspond to BL-T9, followed by two characters, then V06.
  • On a LG cell, the front data matrix barcode should decode to the form EAC62078701LT140504 (from the genuine old battery), which should correspond to the part number prefix EAC62078701 and the printed manufacture date 2014/05/04.
  • On a LG cell, the back cell part number should correspond to LGHD4ZQ4556.
  • On a Sony cell, the front data matrix barcode should decode to the form EAC62079101ST131023, which should correspond to the part number prefix EAC62079101 and the printed manufacture date 2013/10/23.
  • On a Sony cell, the back should have Sony 13 W and cell part number US465661H 2.
  • On a Sony cell, the back data matrix barcode should decode to the form 2K0376FB068VK19A.
